Fishing Hooks PVD Vacuum Coating Machine, Wear Resistance With Multi Arc Evaporation

Name: Fishing Hooks PVD Vacuum Coating Machine Wear Resistance With Multi Arc Evaporation
Brand: ROYAL
Price: 1 USD

Quality Fishing Hooks PVD Vacuum Coating Machine, Wear Resistance With Multi Arc Evaporation wholesale

Brand Name : ROYAL

Model Number : RTAC1000

Certification : CE

Place of Origin : Made in China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 6 sets per month

Delivery Time : 12 weeks

Packaging Details : Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.

Technique : PVD, Balanced/Unbalanced Magentron Sputtering Cathode

Applications : Metal jewelry, watches, necklace, ear rings, finger rings, bracelets, handbag chains, logos

Film Features : bright colors, wear resistance, strong adhesion, decorative coating colors

Deposition Sources : Sputtering + cathodic arc evaporation

Factory Location : Shanghai city, China

Worldwide Service : Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Training Service : Machine operation, maintenance, coating process Recipes, program

Warranty : Limited warranty 1 year for free, whole life for machine

OEM & ODM : available, we support tailor made design and fabrication

Contact Now

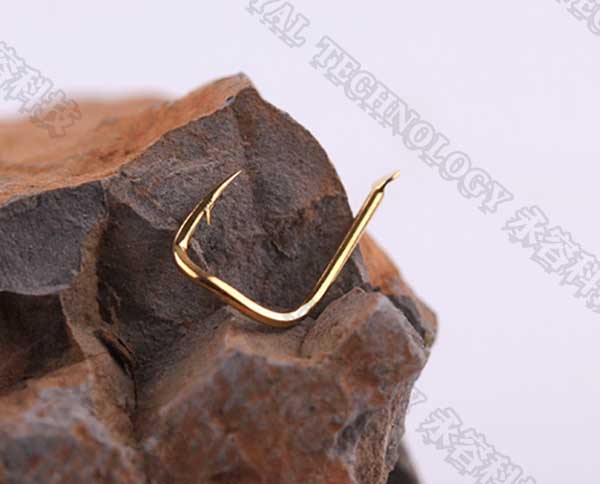

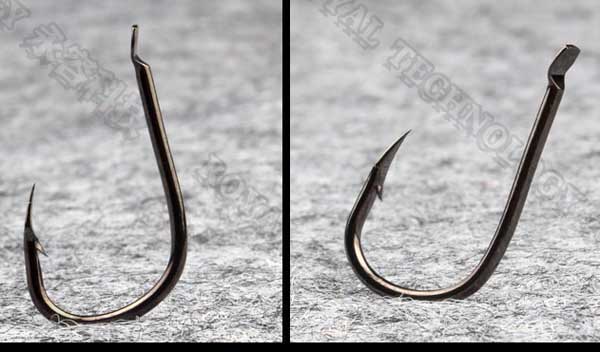

Fishing Hooks Vacuum Plating Machine / Fishing Instrument PVD Plating Equipment

Fishing Hooks Vacuum Plating Machine was built in 2015 for our South Korea customer who manufacturing and supply fishing instruments to worldwide.

The standard model is RTAC1008, the machine contains key configurations

1. 6 sets cicular steered arc cathodes

2. Bias power supply

3. 1 set anode layer Ion source unit for optional.

4. High vacuum pumping system with Turbo Molecular pump for a stable vacuum environment.

5. Exclusively designed rotary jack and substrate holder system.

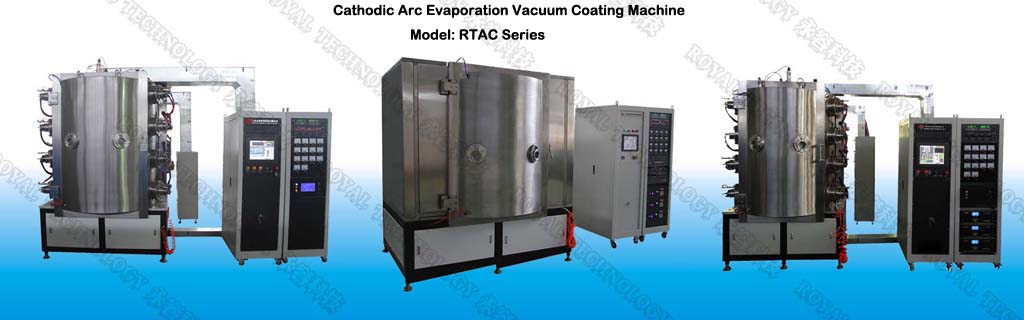

The Arc Ion Plating Machine RTAC1008-SP Specifications

MODEL				RTAC1008
TECHNOLOGY				Multi Arc Evaporation
MATERIAL				Stainless Steel (S304)
CHAMBER SIZE				Φ1000*H800mm
CHAMBER TYPE				Cylinder, vertical, 1-door
SPUTTERING SYSTEM				Exclusively design for IPG gold, silver sputtering deposition
DEPOSITION MATERIAL				Aluminum, Silver, Copper, Chrome, Stainless Steel, Nickel, Gold, TiAl, Au alloy, Ag etc.
DEPOSITION SOURCE				Cathodic Arc Sources
GAS				MFC- 4 ways, Ar, N2, O2, C2H2
CONTROL				PLC(Programmable Logic Controller) +
PUMP SYSTEM				SV300B - 1 set (Leybold)
				WAU501- 1 sets (Leybold)
				D60T- 1set (Leybold)
				Turbo Molecular Pumps:1* F-400/3500
PRE-TREATMENT				Bias power supply: 1*24 KW
SAFETY SYSTEM				Numerous safety interlocks to protect operators
COOLING				Cold Water
POWER ELECTRICAL				480V/3 phases/60HZ ( USA compliant)
				460V/3 phases/50HZ ( Asia compliant)
				380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT				L3000W3000H2000mm
TOTAL WEIGHT				7.0 T
FOOTPRINT				( LWH)40003000 3000 MM
CYCLE TIME				30~40 minutes (depending on substrate material, substrate geometry and environmental conditions)
POWER MAX..				55 KW
AVERAGE POWER CONSUMPTION (APPROX.)				30 KW

Fishing Hooks PVD Vacuum Coating Machine, Wear Resistance With Multi Arc Evaporation

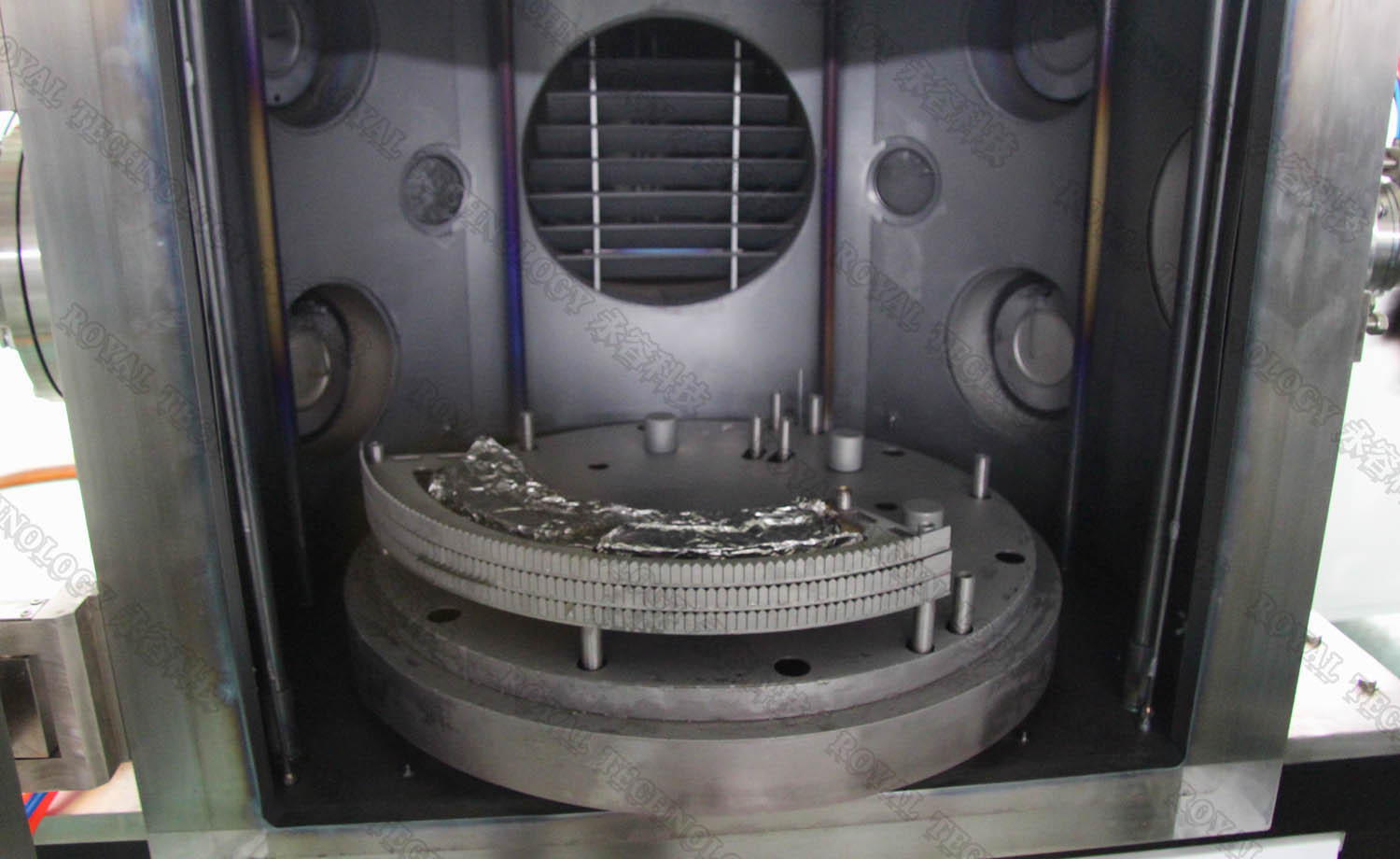

The Metal Watches and Jewelry Gold Plating Machine chamber structure - RTAC1008-SP

Fishing Hooks PVD Vacuum Coating Machine, Wear Resistance With Multi Arc Evaporation

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
